Bossom: Personal Breast Ultrasound
Empowering women to become the experts of their own bodies
Timeline: Sept—Dec 2019
Project type: Individual
My role: User research, industrial design, UX design, System design, Market research
Project Overview
Context
Breast cancer is more common than we think. About 1 in 8 U.S. women (~13%) will develop invasive breast cancer over the course of her lifetime. As of January 2020, there are more than 3.5 million women with a history of breast cancer in the U.S. 1 in 39 women (~3%) will die from breast cancer. However, if breast cancer can be diagnosed at stage 0, nobody has to die from it.

Problem
Women don't have much control over their breast cancer screening: most of them don't start until they are 40 and screening is not accessible outside of a hospitable setting. Medical screening like Mammogram is very expensive and radiative. Women needs an accessible and affordable tool to do breast cancer screening safely and early.

Outcome

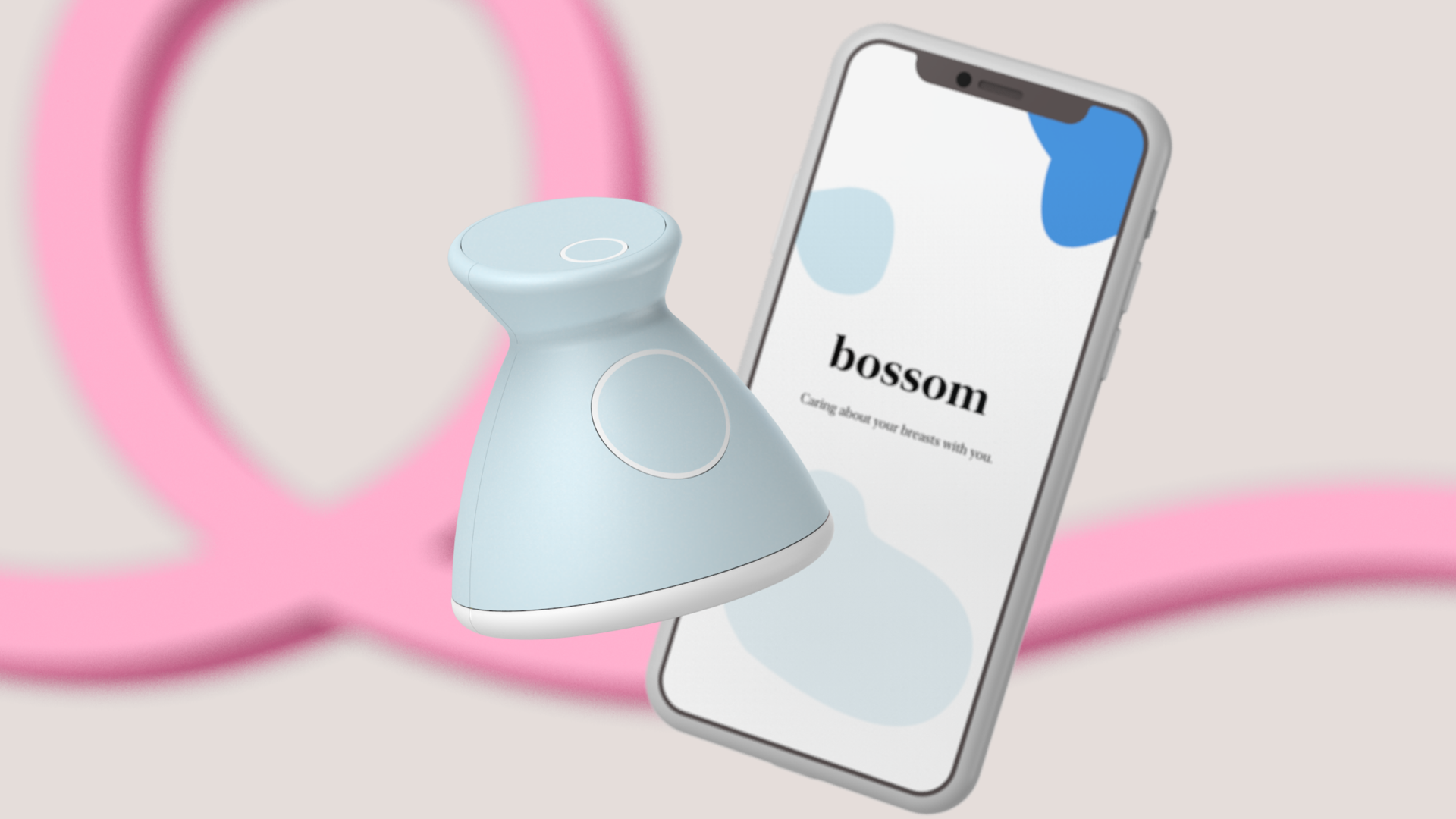

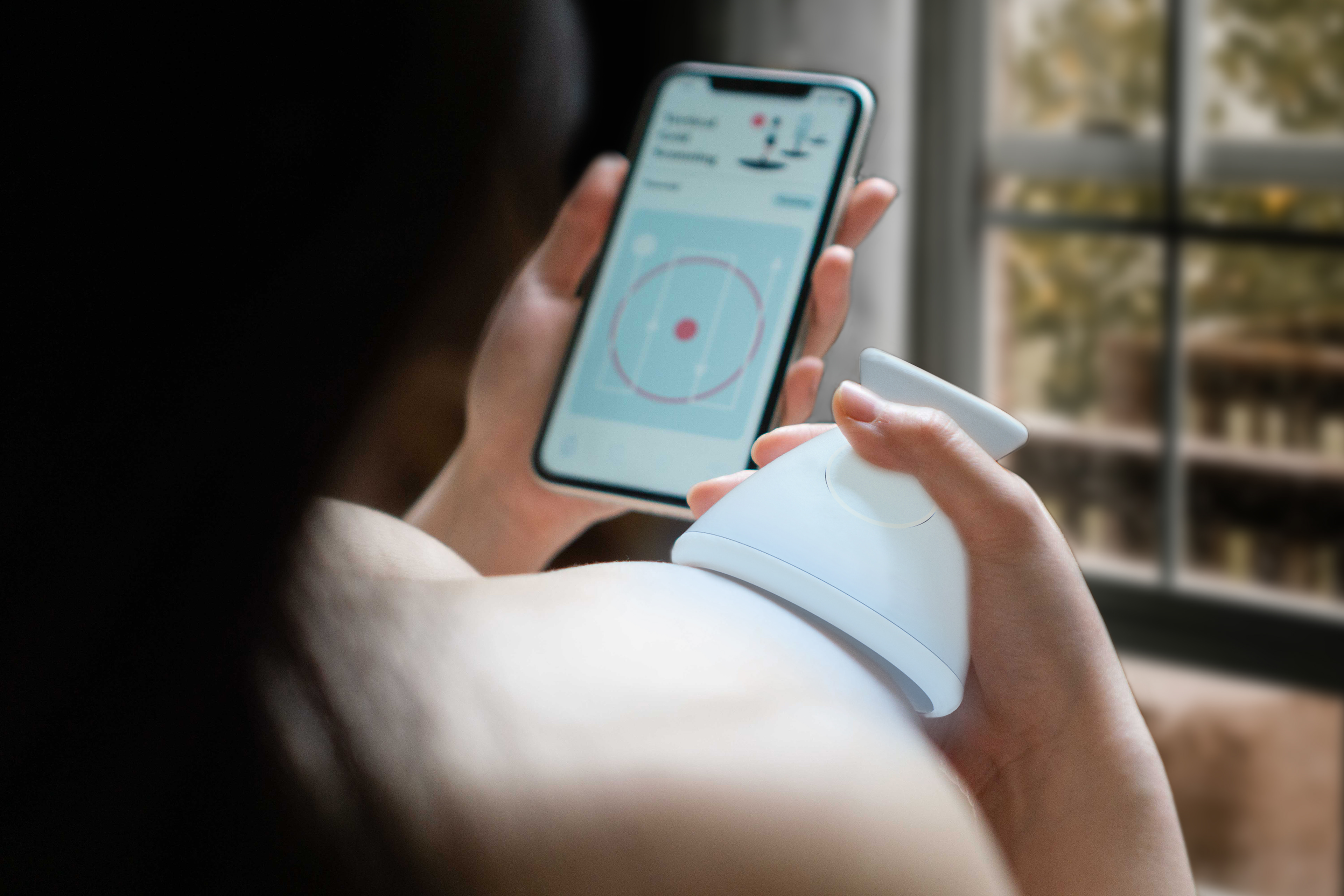

Bossom is a non-invasive, low-cost, women-centered, and empowering breast ultrasound device for early detection of breast cancer. It uses a compressive ultrasound technology to enable women to check their breasts in a non-invasive way. The integrated mobile application removes anxiety and sense of vulnerability by navigating women through the step-by-step scanning process and by empowering women with information about breast cancer.
How might I design an affordable, safe, and anxiety-free screening product to help women detect breast cancer in early stages? ​​​​​​​
Breast Cancer is more common and invasive than we think
Breast cancer was a foreign concept to many people until someone they know has it. I learned it from my mom's best friend who had invasive breast cancer that made her lose all her hair and one of her breasts. After hearing her story, I researched breast cancer and the number shocked me:

One out of eight women in the US will have breast cancer in their lifetime.
The death rate of invasive breast cancer is  3%.
Breast cancer is the   2nd most popular cancer that kills women.
More than 3.8 million women in the US had been diagnosed with breast cancer.
The survival rate for stage 4 breast cancer is 22% while it's nearly 100% for stage 0.
Research Insights
Beyond intensive desk research, We interviewed 15 people, including journalism professionals, professors in media studies, researchers in information disorder, and general media consumers from teenagers to adults, to learn about their experience with misinformation. Here are some key insights:

1. Breast cancer is a nerve-wrecking topic: Many women are traumatized after having breast cancer. Even the screening process is uncomfortable and dehumanizing to many. It's important to remove anxiety for and humanize users.

2. Women don't have control over their breast cancer screening: The United States Preventive Services Task Force (USPSTF) recommends women between 50-70 and are at average risk of breast cancer get a mammogram every two years. Women between 40 and 49 should talk to their doctors about when to start and how often to get a mammogram. This doesn't give women any say on their breast cancer screening.

3. Traditional screening method is expensive and radiative: Mammogram is the most reliable method to screen breast cancer in the medical setting. However, it is very expensive and radiative. It's not very accessible to women living in underdeveloped areas and it can give women breast cancer when they don't already have it.

4. Alternative technology shines light to home-use screening method: Ultrasound has been a safe alternative to mammogram for pregnant women and those with dense breasts. The existing products of portable ultrasound device opens the opportunity for women to do breast cancer screening at home with proper training.

5. People don't want to see sonography images unless there's a baby in their tummy: Many portable ultrasound devices show users the sonogram in real time. However, the diagram is complicated and anxiety-inducing because people don't want to see bad things in their body.

6. There's a general lack of awareness of breast cancer: as mentioned above, because breast cancer is such a heavy topic and many schools don't cover it, it's hard for women to educate themselves on the condition. It's important to give them the knowledge and tools so that they can become the experts of their own bodies.

"Women don't go to their doctor's appointment because they are too busy taking care of other people"
— A breast cancer expert, Swedish Cancer Institute
Define
After analyzing research insights, I identified my target audience to be women in developing counties who don't have access to good healthcare and breast cancer screening resources. My design opportunity is to create a low-cost, accurate, and non-invasive personal ultrasound device that reduces anxiety and normalizes breast care routine with the help of a mobile application.
Design: the ultrasound probe
Medical products don't have to look medical

Most ultrasound devices on the market look like the ones in the hospitals. However, my research shows medical products give people anxiety and fear. I decided to design a medical product that doesn't look medical at all.
Design to humanize, to dignify, to do no harm

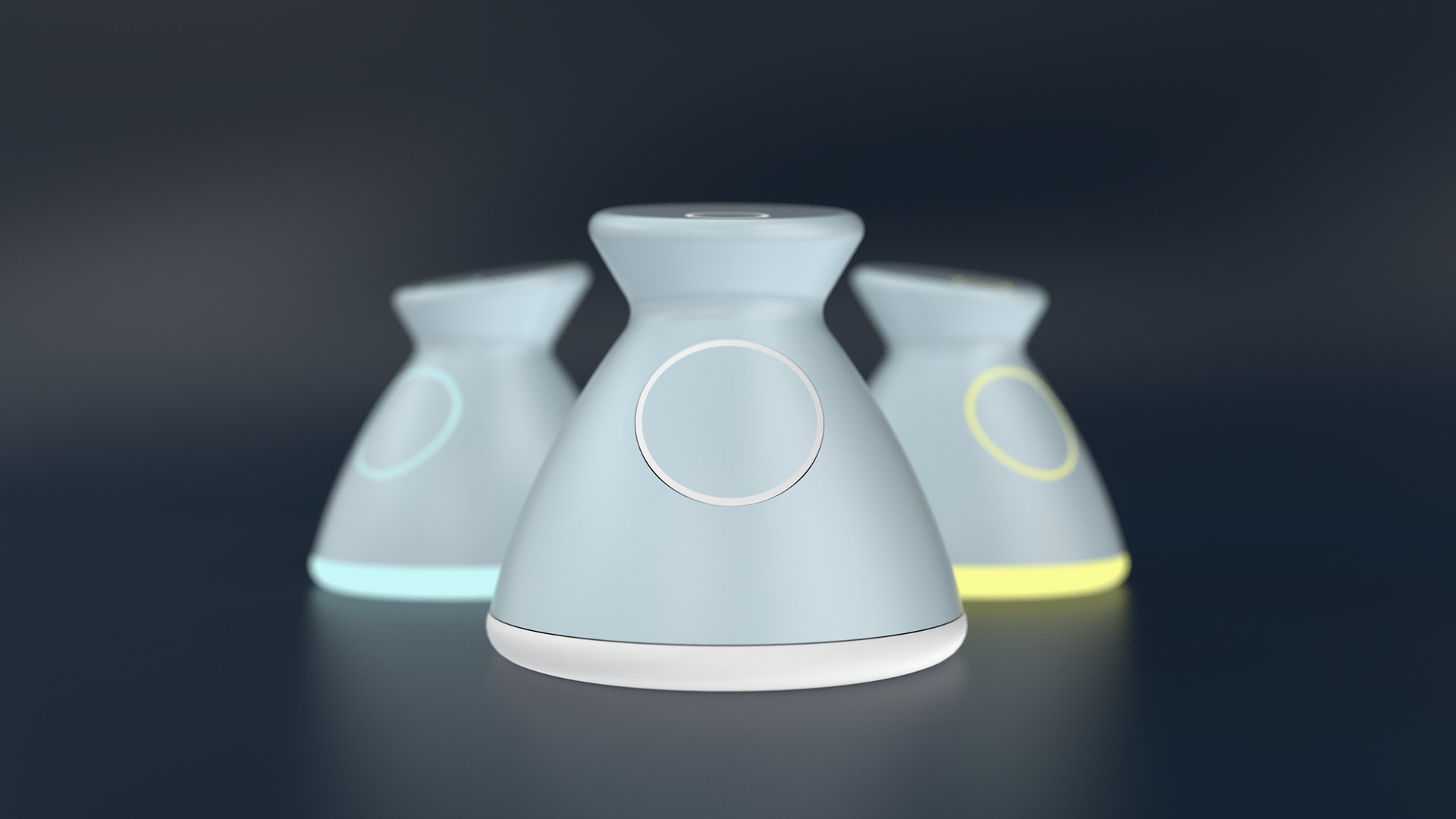

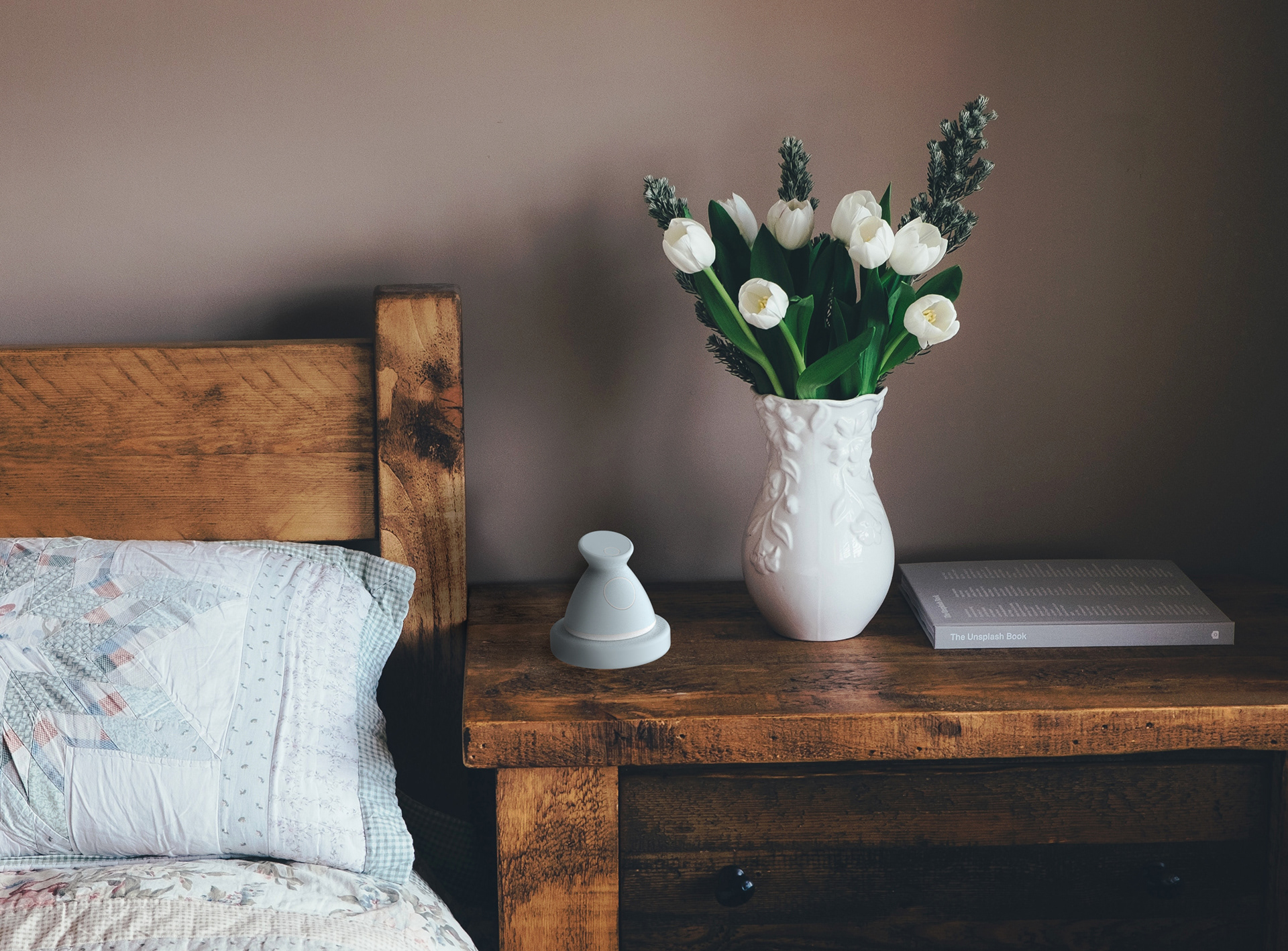

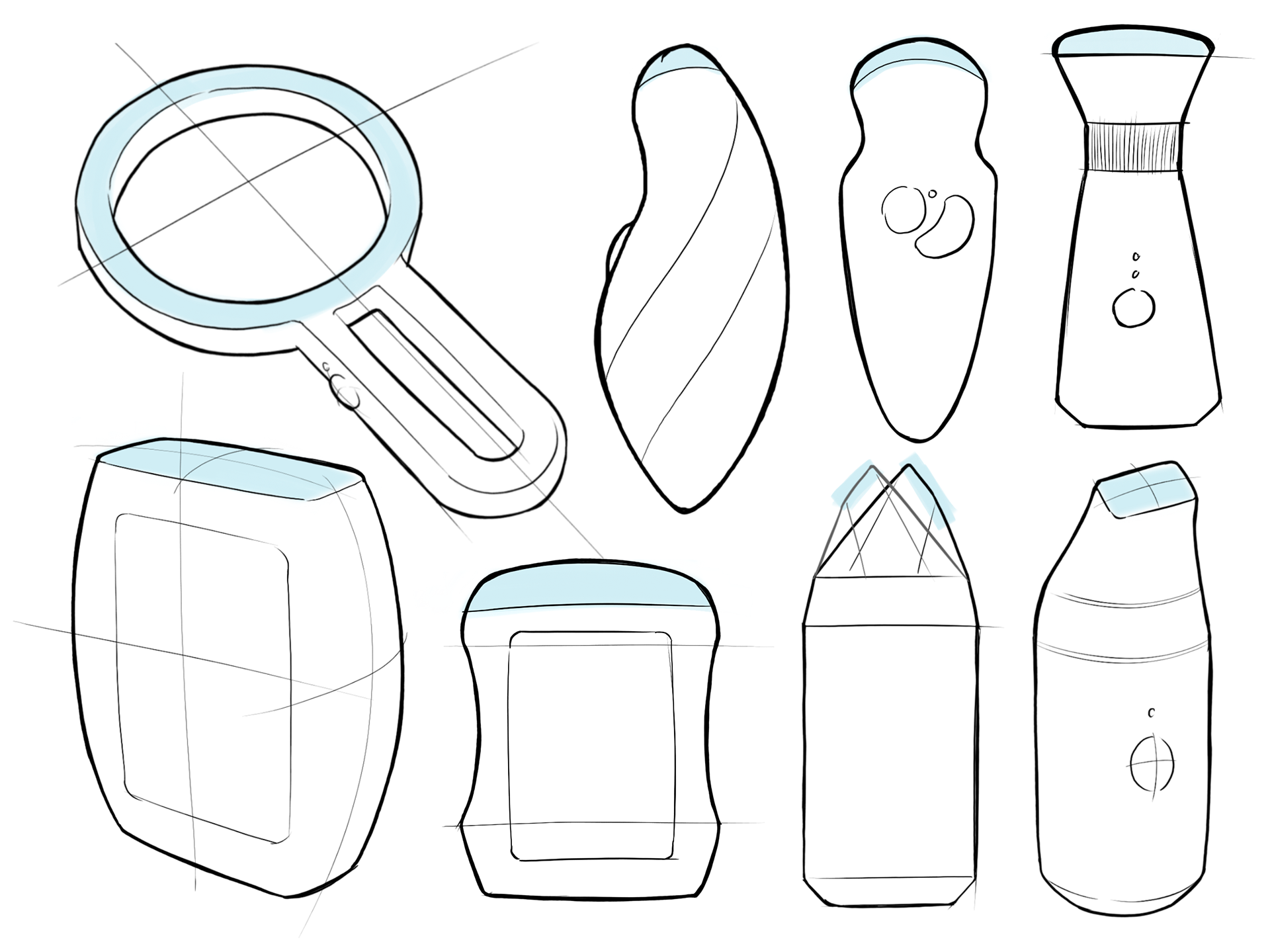

The shape of Bossom is inspired by the organic and beautiful shape of women bodies. The design takes a cosmetic product approach instead of a medical one to provide a sense of security and dignity.
Iterate fast with ugly prototypes

In order to create an ergonomic user experience and maximize usability, I 3D printed several iterations of the design and taped them around to mock up button layouts.

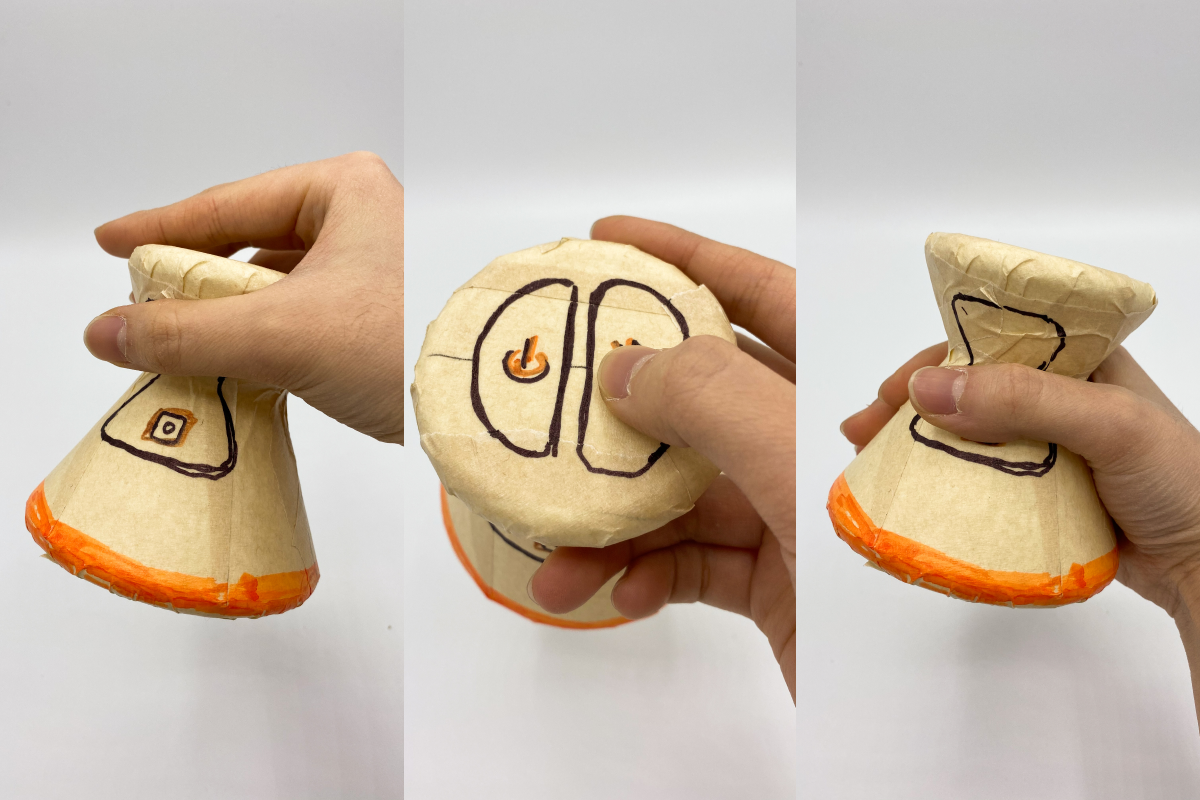

3D printed prototypes

Emerging technology improves affordability

According to a research paper in the Netherlands, putting a compressive coded mask in front of the Piezo sensors can decrease the number of sensor needed from thousands to one, which brings the cost of Bossom down significantly.

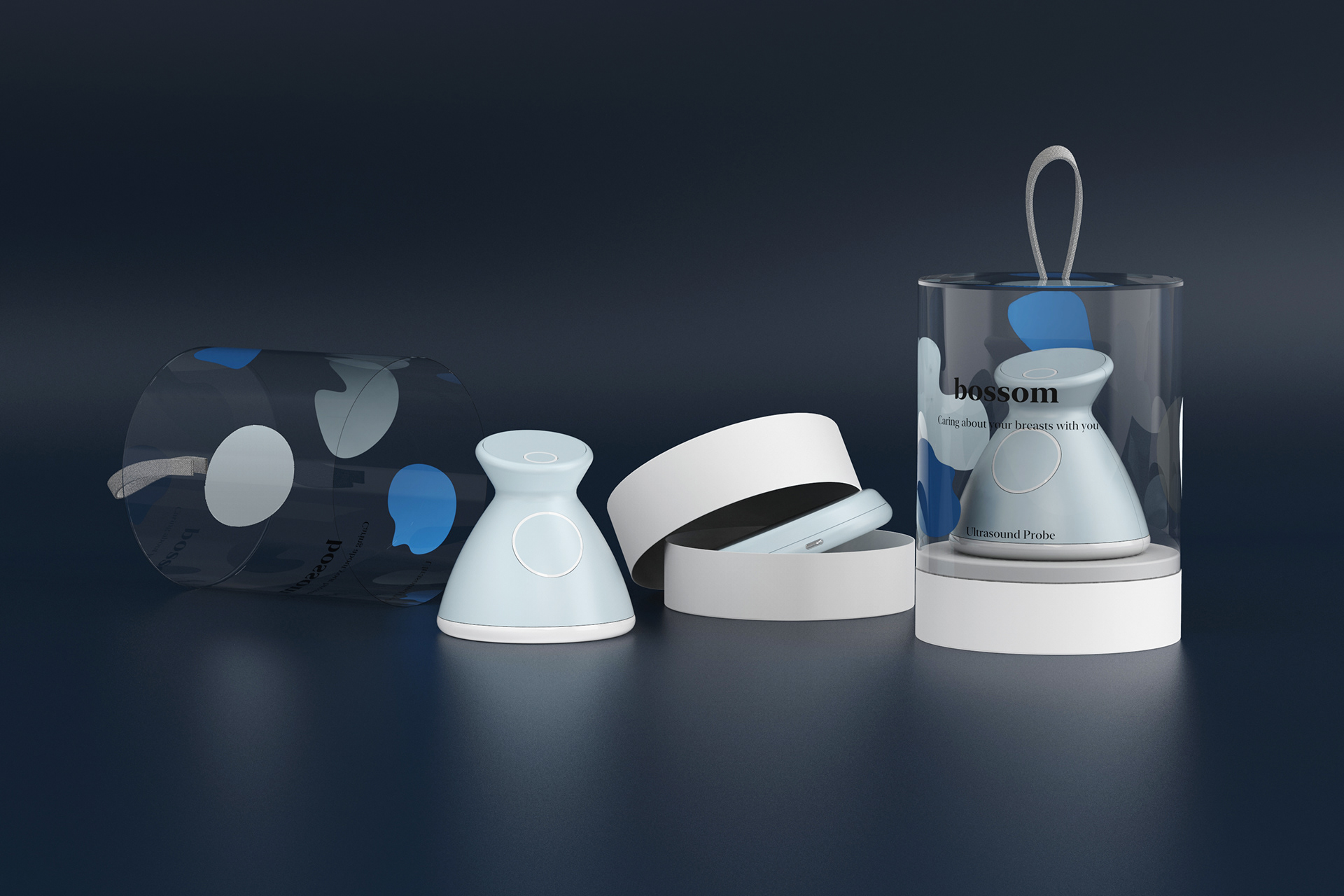

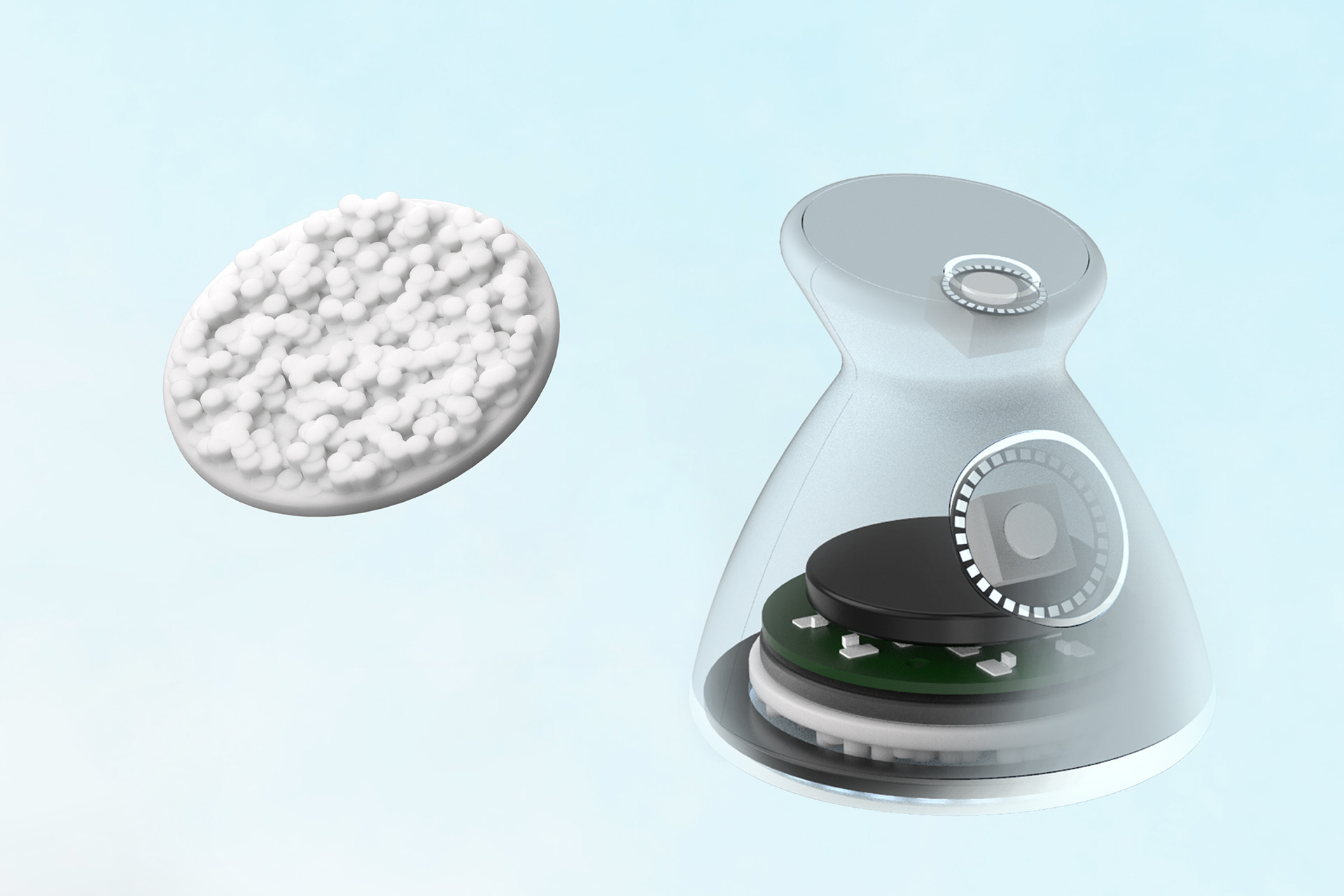

Render of the product with compressive coded mask

Design: the Mobile App
Turning user needs into app features

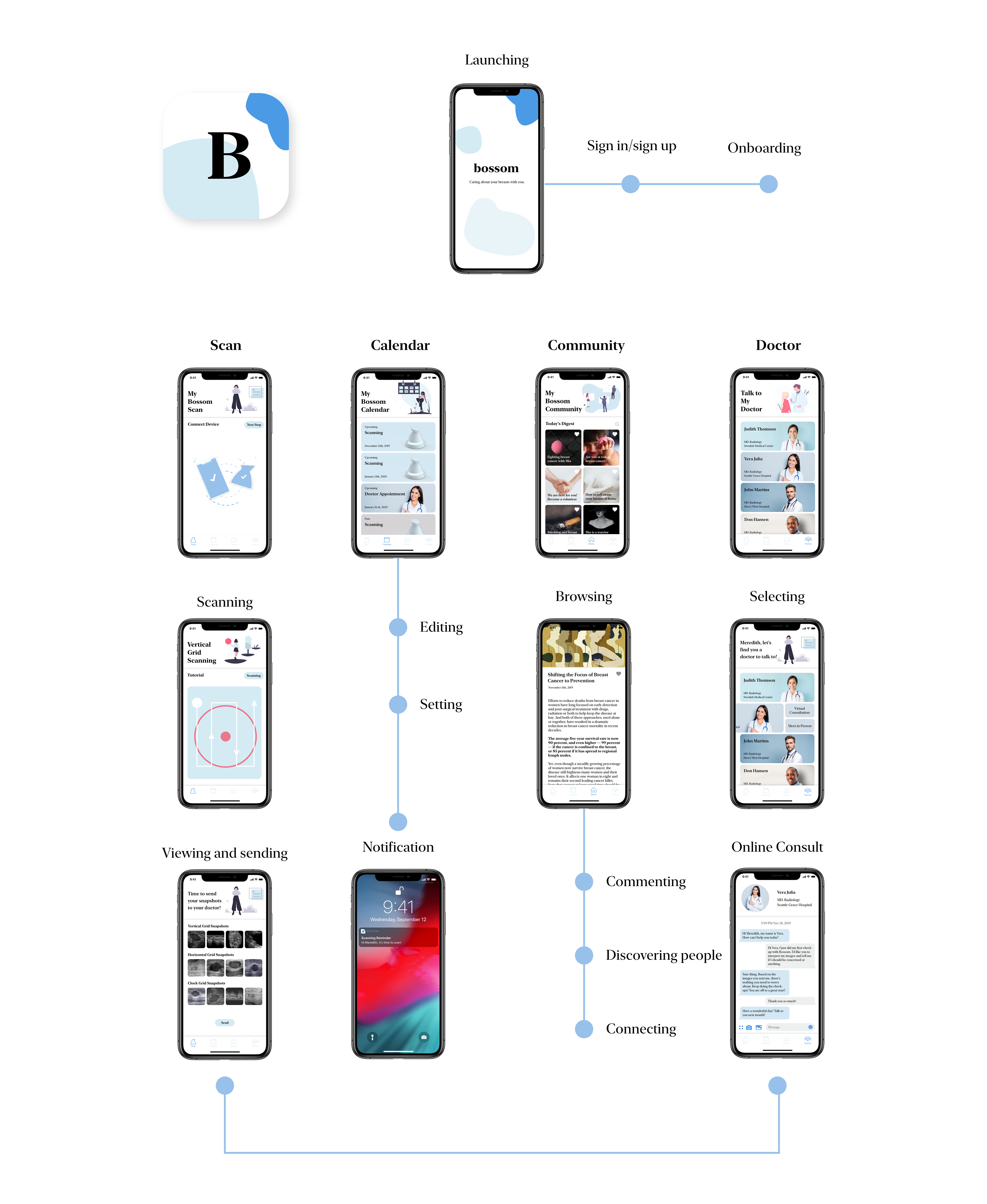

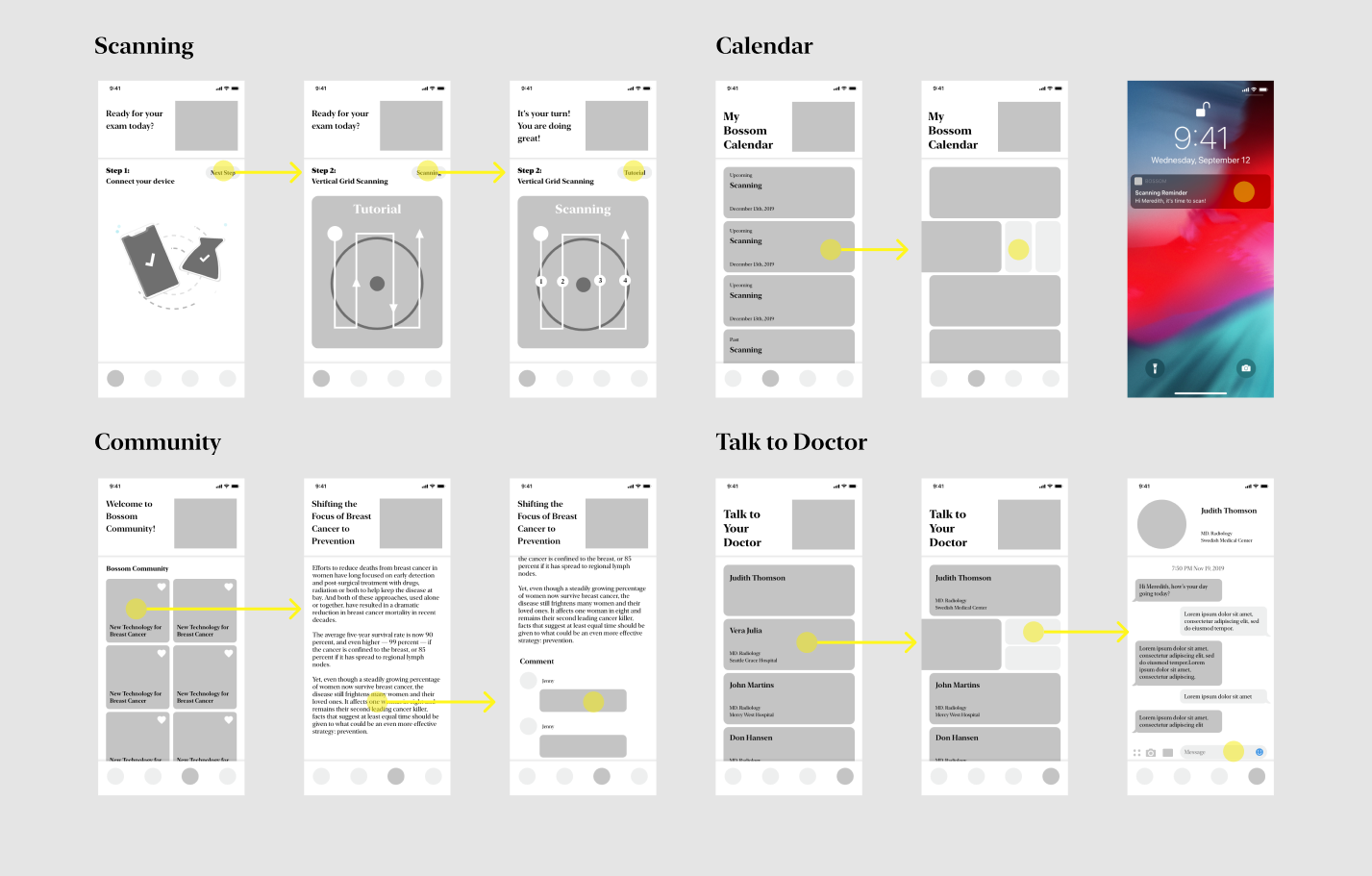

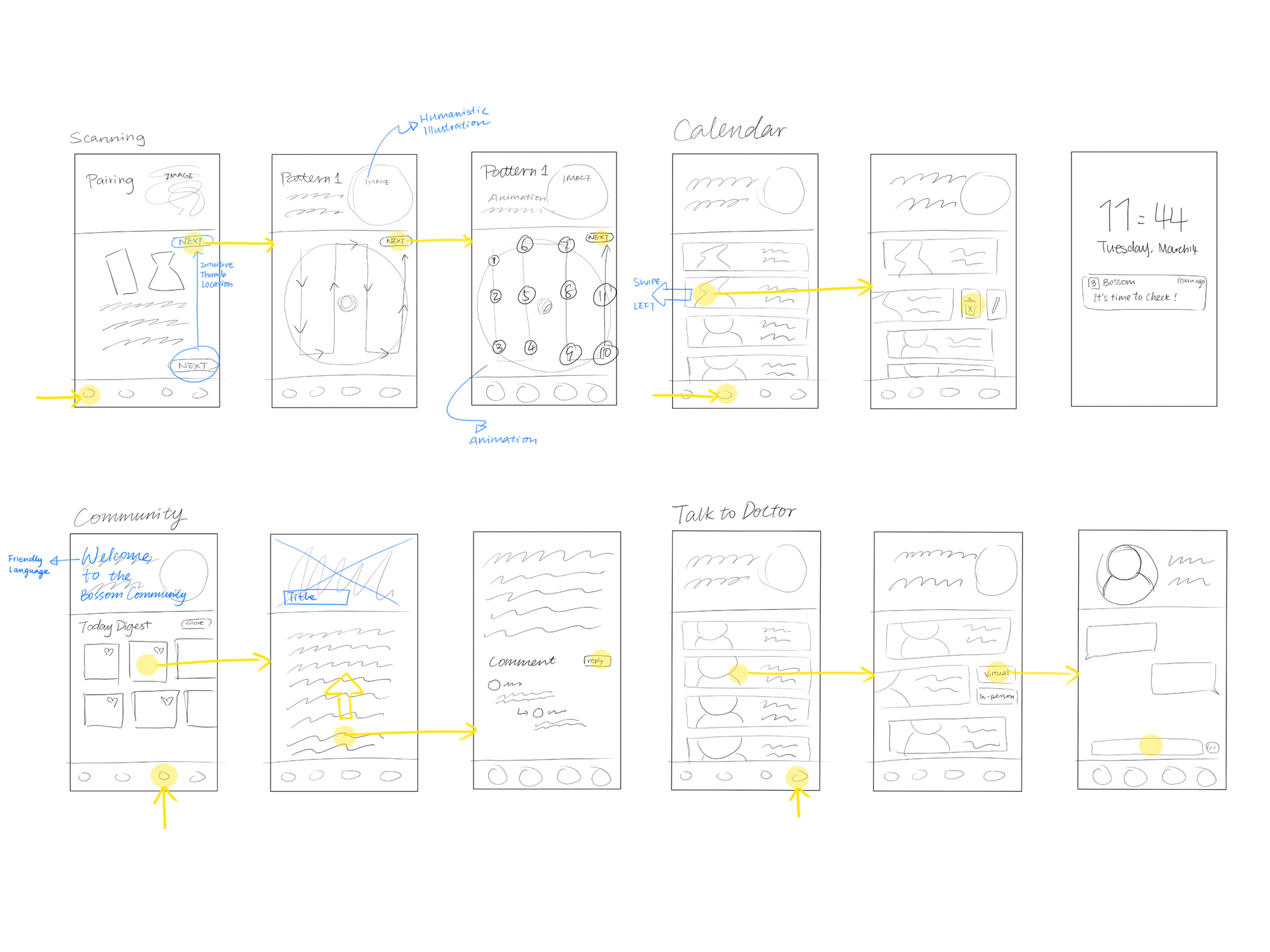

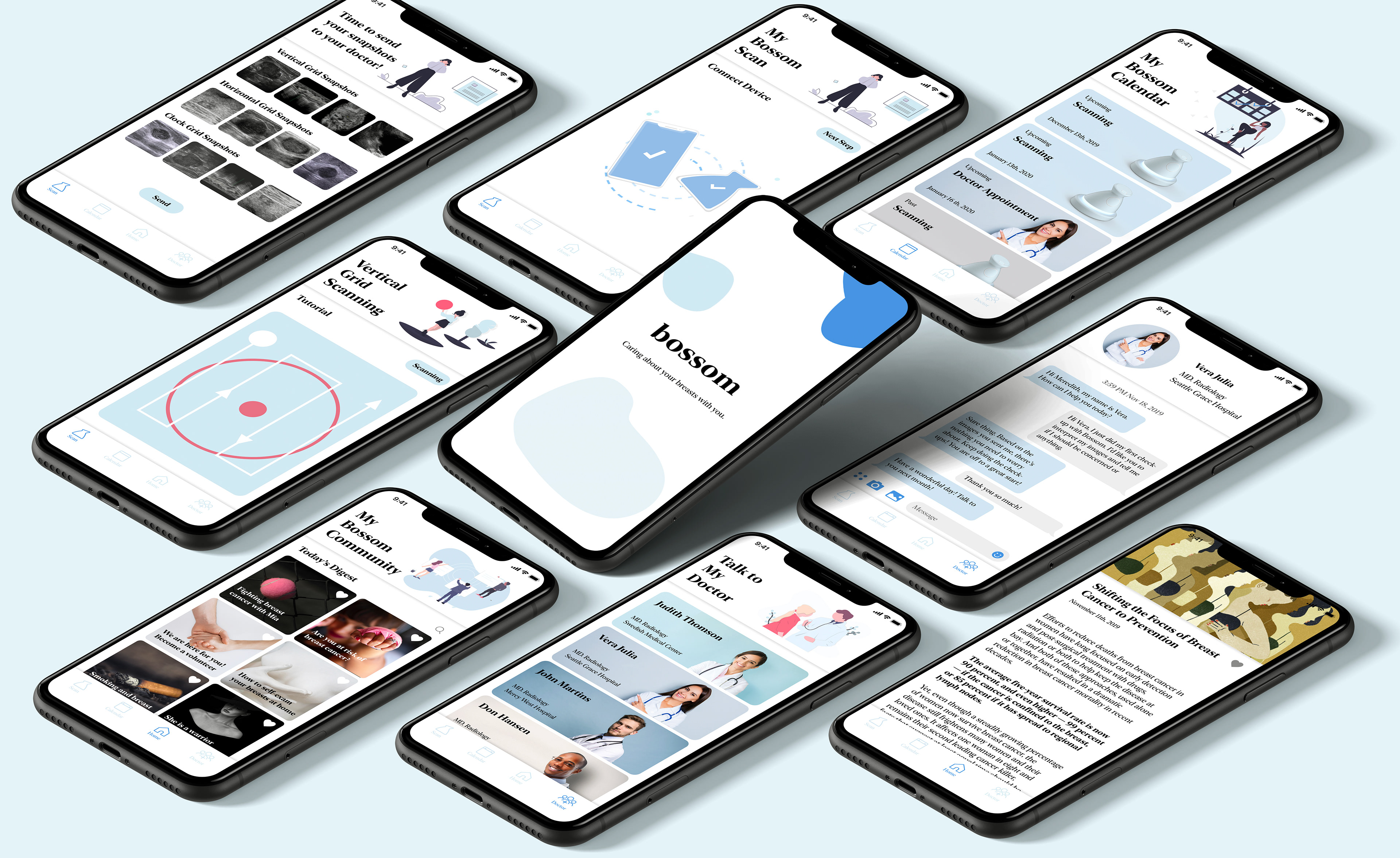

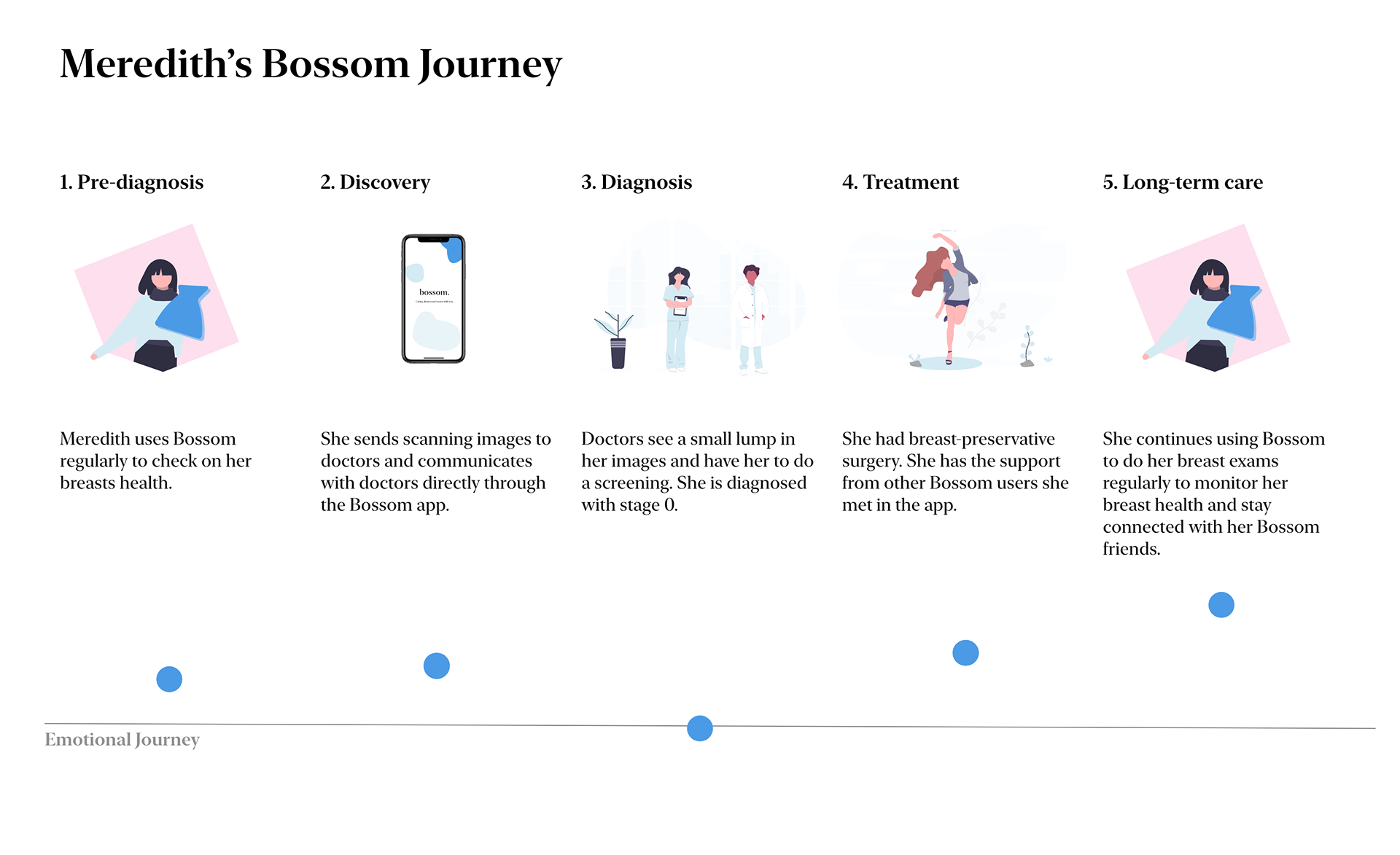

After empathizing with user physical and emotional needs, I developed 4 main features for the app: Scanning, Talk to Doctor, Community, and Calendar.
If I want to help others to become "sonographers", I have to be one first

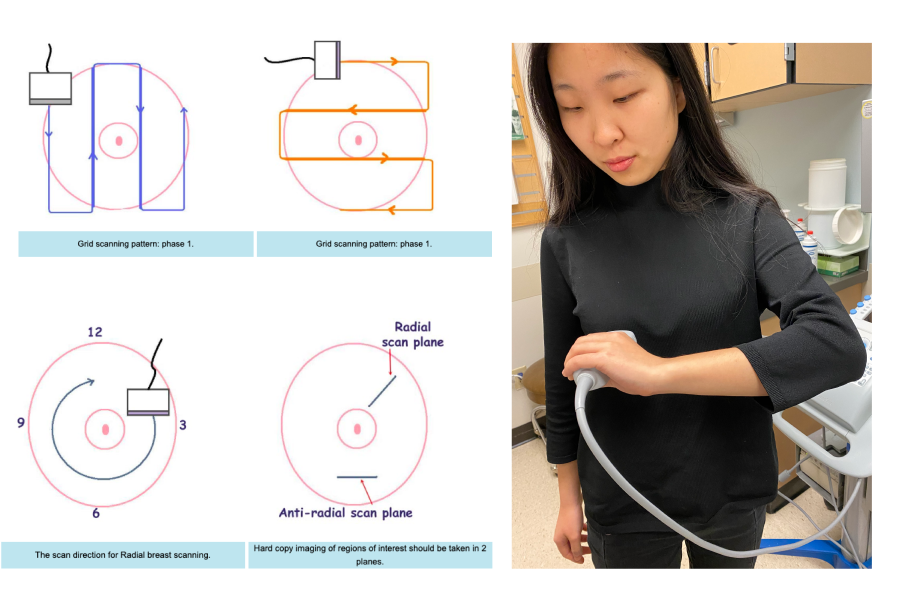

I studied breast ultrasound scanning patterns meticulously through articles and videos. In order to try it out, I visited a women's clinic in Seattle.
Learning from what doesn't work in the competitive products

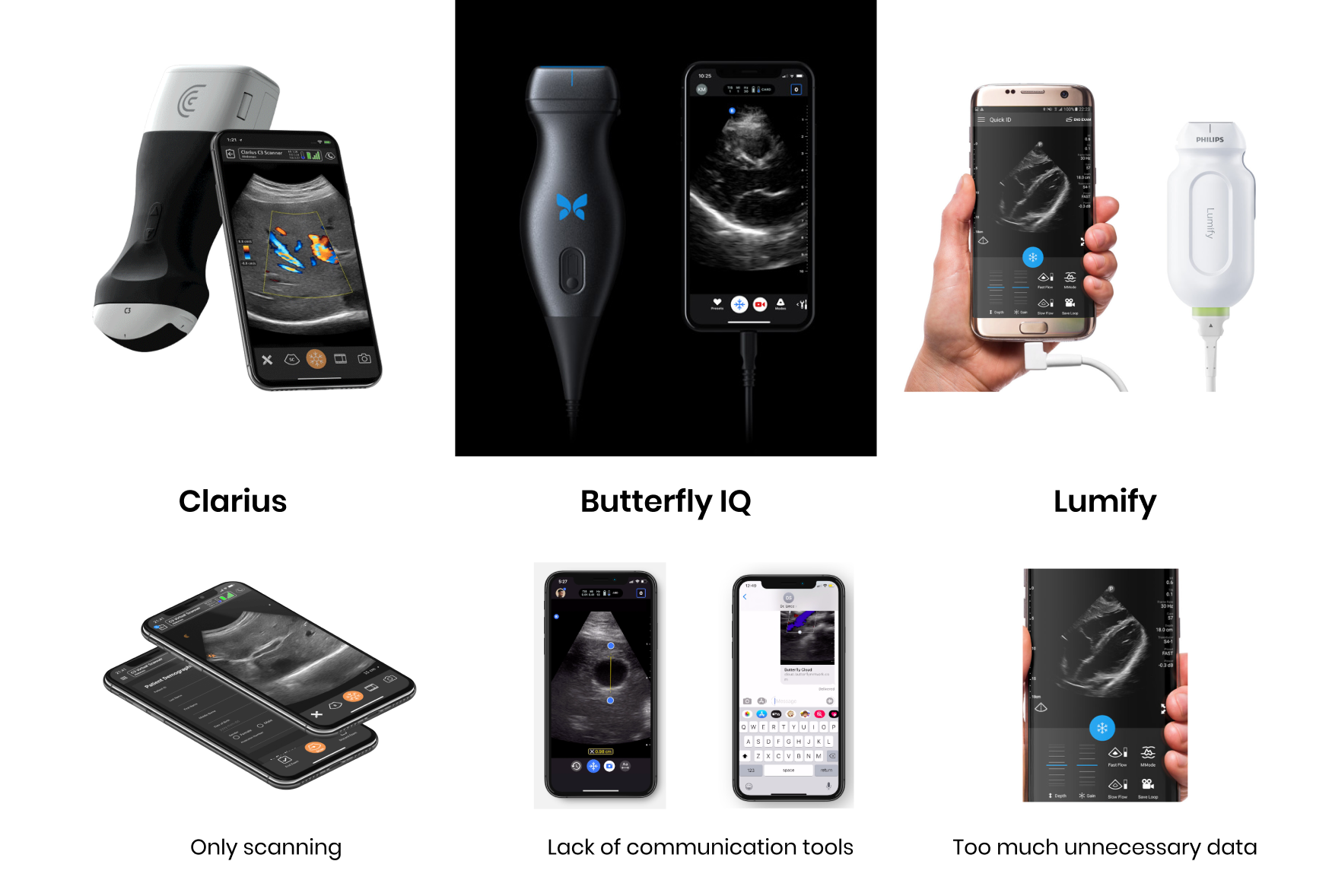

The existing products are not consumer-facing. They target at traveling doctors and nurses. Cross-analyzed three home-use ultrasound products, I found that all of them put all the emphasis on the scanning part of the user experience, but not addressing what's before, after, and even beyond scanning. There's a general lack of connection between users and doctors, and a tendency to overwhelm users with too much complex data and jargons. Also, the lack of a specific users group results in the design being too general.

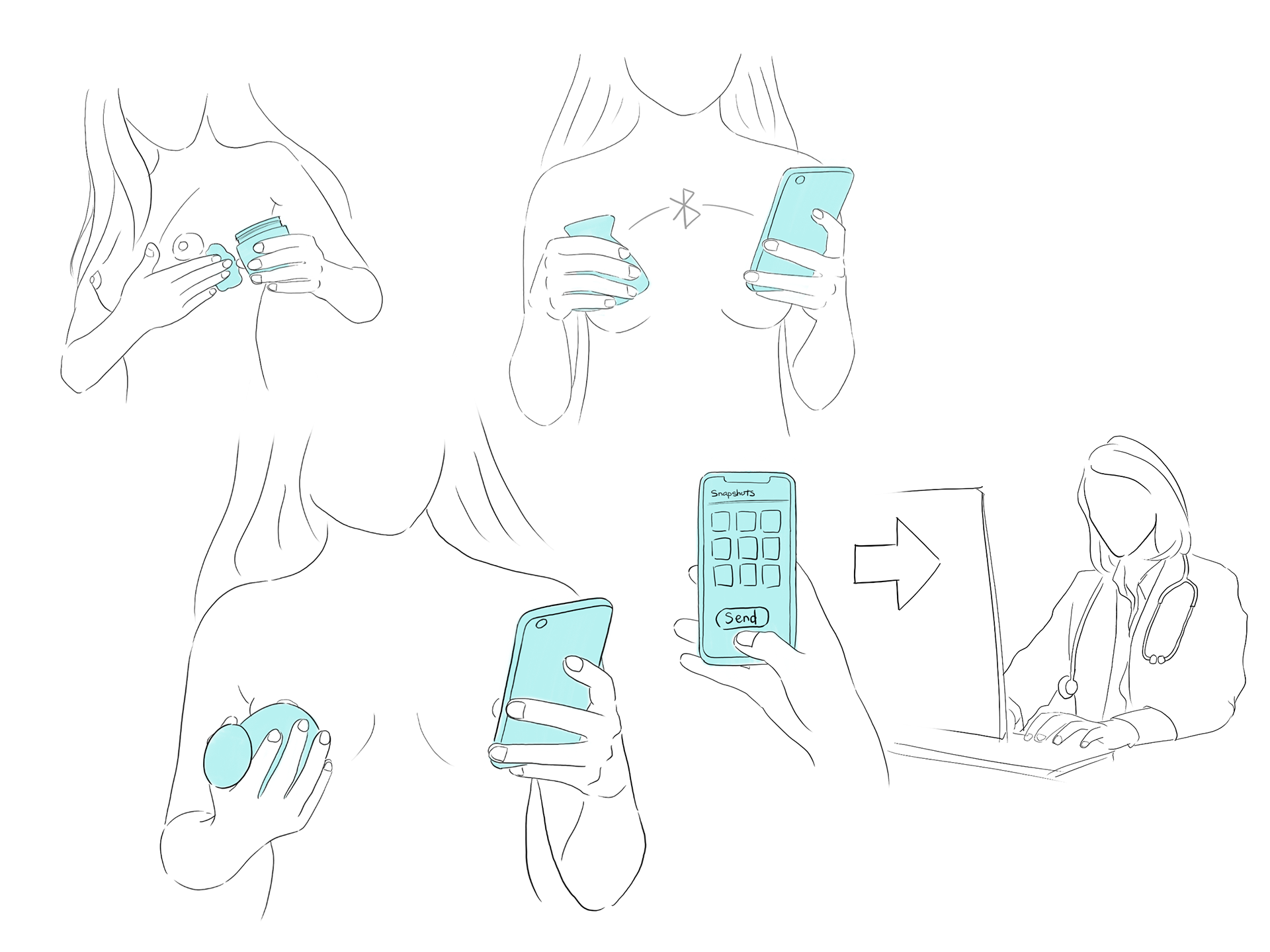

Translating complex procedure into simple instruction

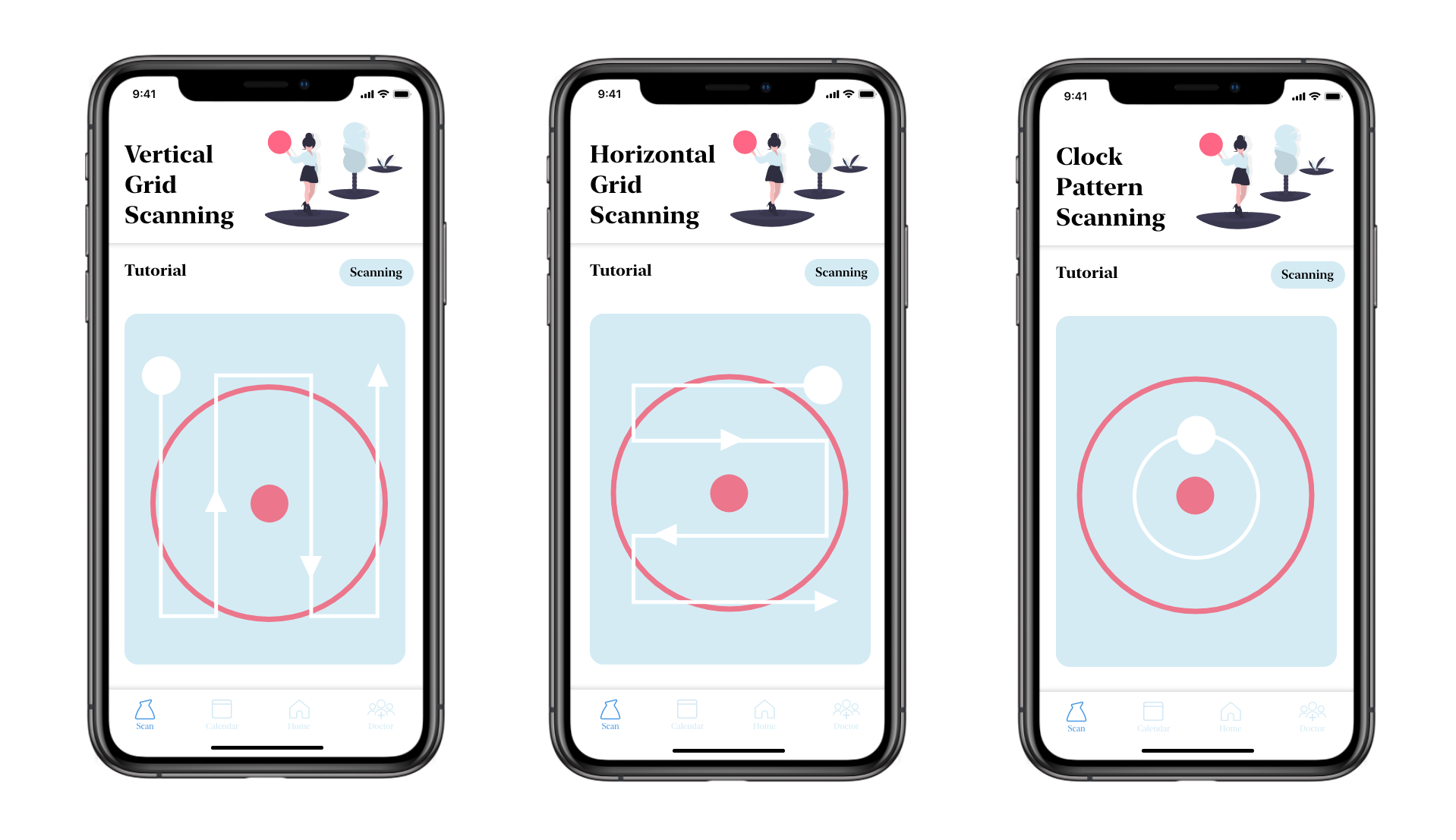

Breast Ultrasound scanning might seem technical and difficult. After diving deep into breast ultrasound exams, I used simple graphics and animation to help users understand how it works.

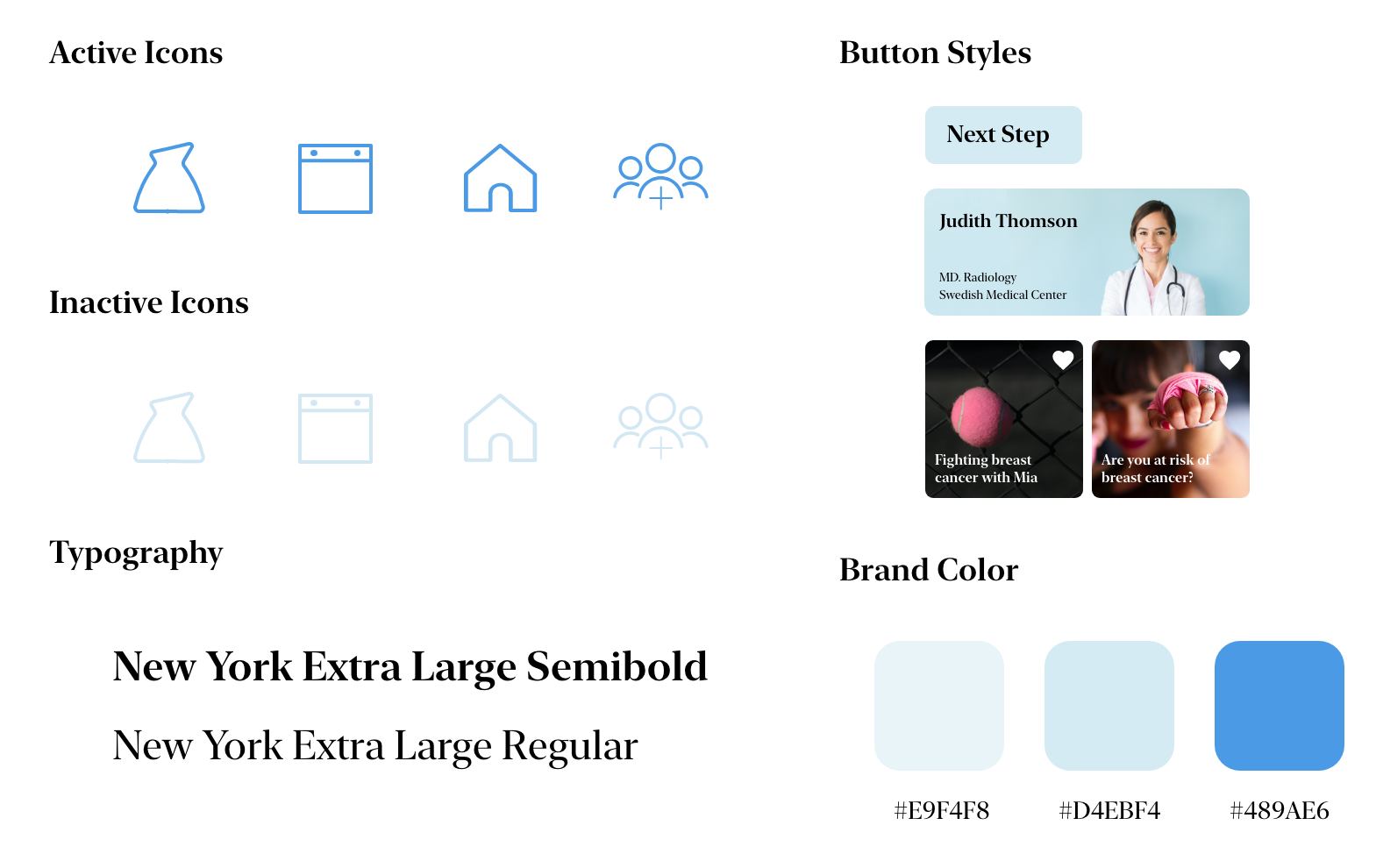

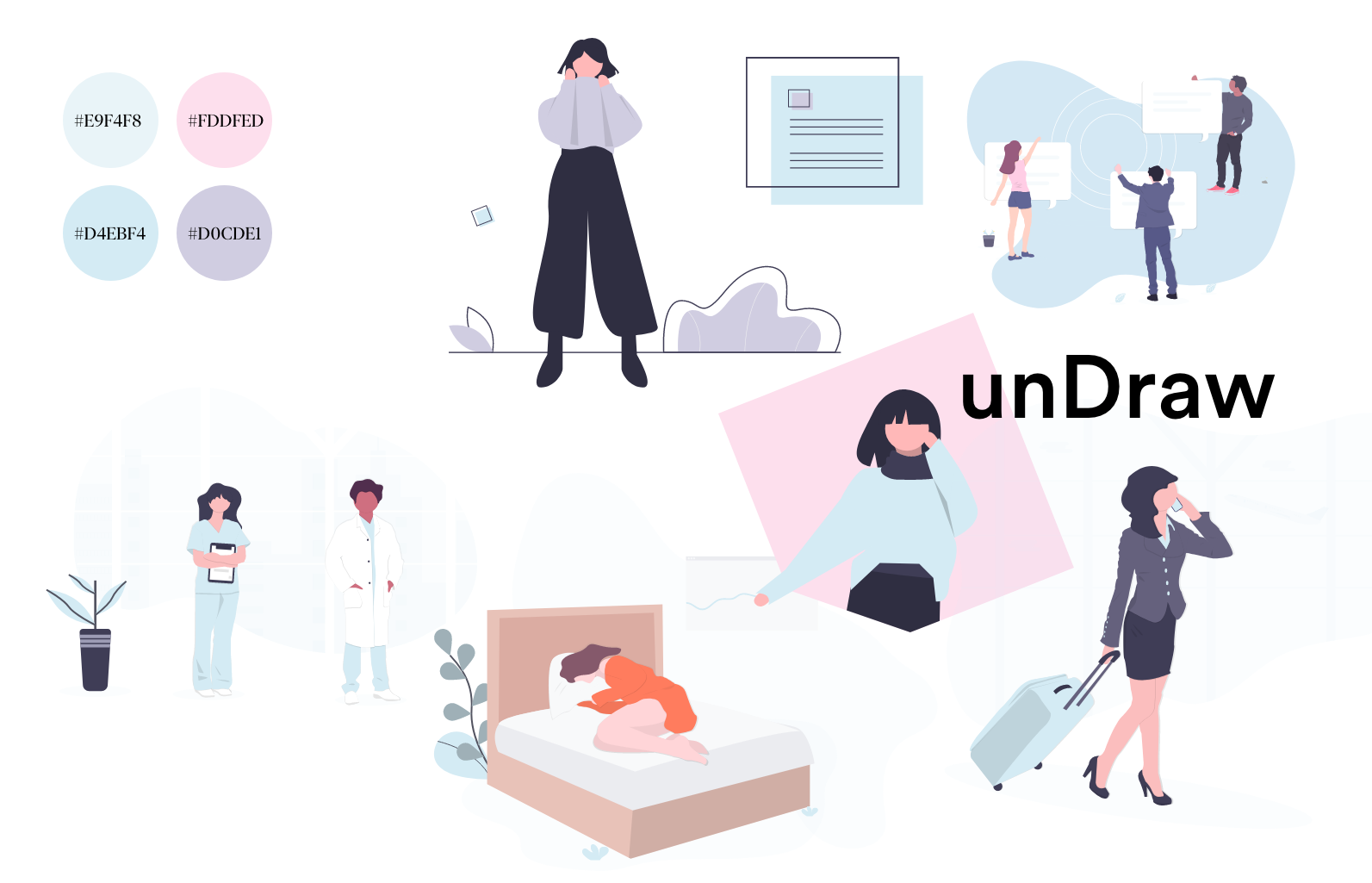

Style Guide
Learning
Women tend to ignore their needs and well-being. Design should start with helping them to become the experts of their own bodies.

When I went to the Breast Cancer Walk in Seattle, an expert from the Swedish Cancer Institute told me: "Women don't go to their doctor's appointments because they are too busy taking care of other people." What she said made me think a lot about how women should be more aware of their breast health and how I can use design to empower them to care about themselves more.


Don't sacrifice user benefits for a problem I don't think I can solve
Before I read the paper about compressive 3D ultrasound, I thought I'd design a traditional ultrasound device that would cost a lot of money. So I focused on those who could afford it. However, what I really wanted to do is to design for the many people, regardless of where they are and how much money they have. So I decided to stick with my targeted user group and kept looking for ways to bring the cost down. Luckily, after weeks of research, I found a valid solution.
